Introduction
In modern healthcare, CT Scan Machines play a crucial role in diagnostic imaging, helping medical professionals from detecting detect diseases, complex fractures to diagnosing cancers and internal bleeding. Imagine a machine that sees right through you! CT scans combine clever engineering with healthcare innovations, revolutionizing diagnosis and treatment. We’ll explore how they work, the latest advancements, and what’s next. A fascinating journey for biomedical engineers, healthcare professionals, students, and tech enthusiasts!
What is a CT Scan Machine?
A CT (Computed Tomography) scan machine is an advanced diagnostic tool that uses X-rays and computer processing to create detailed cross-sectional images of the body. Unlike traditional X-rays, which provide flat images while CT scans create 3D visualizations of internal organs, tissues, and bones enabling more accurate diagnosis and treatment planning.
How Does a CT Scan Machine Work?
- The Patient Lies on the Table: Table slides into a large, circular machine (gantry).
- X-ray Tube Rotates Around the Body: Multiple X-ray beams pass through the body from different angles.
- Detectors Capture the Data: These detectors measure the amount of X-rays absorbed by the body tissues.
- Computer Processes the Data: The machine’s software reconstructs cross-sectional images.
- 3D Imaging: Multiple slices are combined to form complete 3D views of organs.
Types of CT Scan Machines
| Type | Description | Typical Usage |
| Conventional CT | One slice per rotation | Basic imaging |
| Spiral/Helical CT | Continuous rotation capturing volume data | Faster scans |
| Multi-slice CT | Captures multiple slices simultaneously | High-resolution imaging |
| Dual-source CT | Two X-ray tubes for faster imaging | Cardiac imaging |
| Portable CT | Mobile & compact | ICU or emergency use |
Technical Specifications to Know
| Specification | Details |
| Slices | 16, 32, 64, 128, 256, 320 slices (higher = better image quality) |
| Tube Current | Adjustable (typically 10-400 mA) |
| Gantry Aperture | Usually 70-90 cm |
| Table Weight Limit | Typically 200-300 kg |
| Scan Speed | Can be as fast as 0.25 seconds per rotation |

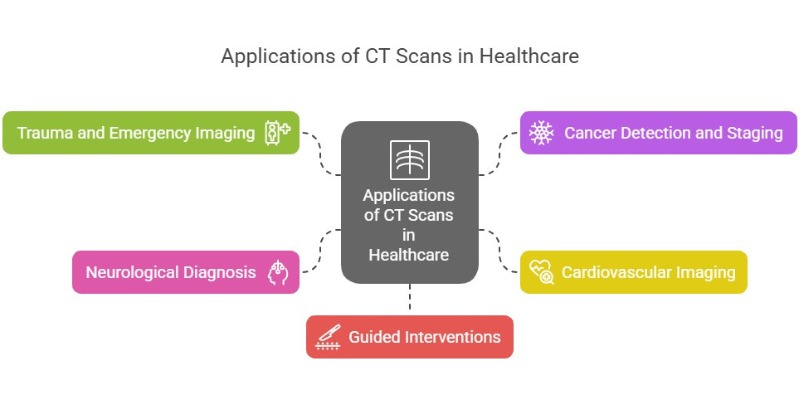

Applications of CT Scans in Healthcare
- Trauma and Emergency Imaging : CT is the gold standard for detecting internal bleeding, fractures, and organ damage following trauma.
- Cancer Detection and Staging : CT scans provide tumor size, shape, and spread, helping oncologists with staging and treatment planning.
- Cardiovascular Imaging : Specialized Cardiac CT helps detect coronary artery disease and assess heart structures.
- Neurological Diagnosis : CT is essential for stroke detection, brain injuries, and tumor identification.
- Guided Interventions : CT-guided biopsies and minimally invasive surgeries enhance precision.
Technological Advancements in CT Scan Machines
1. Dual-Energy CT : Uses two different X-ray energy levels to enhance tissue differentiation, especially helpful in cancer diagnosis.
2. Spectral CT : Provides detailed material characterization, helping differentiate between plaque types in arteries or identifying contrast agents with high precision.
3. AI Integration : Modern CT scanners are increasingly using AI algorithms for automated detection, noise reduction, and reconstruction speed enhancement.
4. Low-Dose Scanning : New generation machines focus on minimizing radiation dose while maintaining image quality, addressing concerns about radiation safety.
CT Scan Machine Maintenance & Role of Biomedical Engineers
Biomedical engineers play a critical role in installing, calibrating, maintaining, and upgrading CT systems. Common responsibilities include:
- Quality Assurance Testing: Ensuring image quality and radiation safety.
- Component Calibration: Regularly adjusting detectors and X-ray tubes.
- Software Updates: Implementing firmware updates for enhanced processing.
- Troubleshooting: Diagnosing hardware and software malfunctions.
Regulations and Compliance
Key Standards and Guidelines for CT Machines
- FDA (U.S.) – 21 CFR 1020.33 : (Performance standards for diagnostic X-ray systems)
- IEC 60601-2-44 : (Medical electrical equipment – Particular requirements for basic safety and essential performance of CT scanners)
- AAPM Reports : (American Association of Physicists in Medicine guidelines on dose optimization)
